    J44H鑄鋼角式截止閥




    J44H鑄鋼角式截止閥




    產品名稱：J44H鑄鋼角式截止閥


    產品型號：J44H


    連接方式：法蘭


    結構形式：角式


    驅動方式：手動


    產品口徑：50mm～150mm


    公稱壓力：1.6MPa～6.4MPa


    閥體材質：鑄鋼、鑄鐵、不銹鋼




    閥門十大品牌全國服務電話








    產品詳情





    J44H/Y鑄鋼角式截止（止回、節流）閥
    設計與制造標準：
    ●設計與制造：BS1873　BS5160　GB12233
    ●法蘭尺寸：ANSIB16.5　JB/T79　GB9113
    ●壓力溫度：ANSIB16.34
    ●結構長度：ANSIB16.10　BS1873　GB12221
    ●對焊連接尺寸：ANSIB16.25
    ●檢驗與實驗：BS6755　GB/T13927

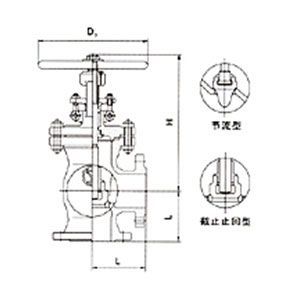

    安裝尺寸及重量：
    ANSI 150Lb
    NPS221/2345681012
    L102108121146178203248311349
    H375390425515535570645715995
    D0200250250300300350400450600
    Wt203540587398202305405
    GB 1.6MPa
    DN506580100125150
    L125145155175200225
    H375390425515535570
    D0200250250300300350
    Wt203540587398
    ANSI 300Lb
    NPS221/2345681012
    L133146159178200222279311-
    H3904254505656757158601265-
    D0200250250350400450600600-
    Wt334661105145192311430-
    GB 2.5MPaGB 4.0MPa
    DN506580100125150506580100125150
    L125145155175200225125145155175200225
    H375390425515535570375390425515535570
    D0200250250300300350200250250300300350
    Wt2237426175101213641607499
    GB 6.4MPa
    DN506580100125150
    L150170190215250275
    H390425450565675715
    D0200250250350400450
    Wt334661105145190
